13:1 Compression 3.3L cam'n its ass off

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

waffles

Active Member
Joined
Dec 14, 2010
Messages
314
Reaction score
37
Location
Minnesota
Waffles, every time i see your screen name, i think "***********" grosses me out every time.

Had to do a little bit of googleing, and see a lot of shit I wish I didn't see to understand what a "***********" was...Thank you for stealing my innocence...:shappens:


zach44102

BIG TURBO
Joined
Jan 6, 2010
Messages
2,655
Reaction score
1,651
Location
Georgia
So that block and heads are faster than the ones you took out?

Well yes and no. My original block was scored, and gouged and toast. the heads were also gouged and also filled with about 20 helicoils. But these heads are going to be milled .010, bowls blended, throat narrowed and bladed, and walls worked.

The Block is still up in the air. Working with Josh to get the pistons made but I cant get anything done until I mic this block since it has been honed. If it comes out that the block has been honed .002 then I will keep my 92mm bore. If it has been over honed then I will order my pistons and have the machine shop punch out the block to a 93mm.

The pistons will be Wiseco Forged 12.5:1, 22mm pin, KOB rods, HD skirts

Cant mic the bores until my cylinder bore micrometer gets here, ordered it today.

Last edited:

zach44102

BIG TURBO
Joined
Jan 6, 2010
Messages
2,655
Reaction score
1,651
Location
Georgia
SO I was fortunate today to be able to sit down with Justin Shubert a BIG name in the Toyota 4ag game. He does head work professionally for the Yamaha made 4AG motors which have heads very similar to the SHO motor. He taught me quite bit today and then set me loose on my heads. THEY CAME OUT GREAT!

Loaded up
 3CA7 457F B2ED C41802DBDB95 2774 00000266FADAF037

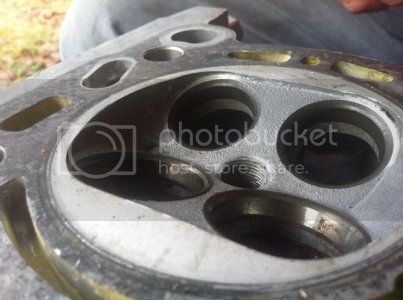

Got down there and he pointing out the defects in the head, first big thing was the valve seat. The valve seat was not recessed below the combustion chamber and actually had a raised lip which in the high compression motor would of for sure could of caused preignition.

 9BC3 4CC4 A22C E2FD0E4461BB 2774 0000026700EF8DA4

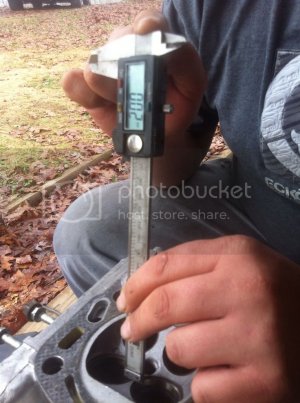

 F39B 46EA B2D1 1A3ECFE5CBB4 2774 0000026708945570

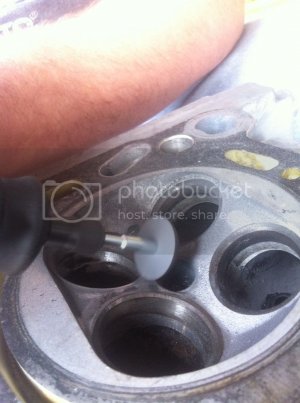

Ground them down flush.

 C105 46EB B7B8 40997BF283E9 2774 000002670FFBE339

Exhaust ports: bowls blended, casting marks removed, mirror polished.


 330D 4922 BB1F 21E330611F54 2774 0000026720119B6F
 FFA5 4149 9BB0 9C8BAC359FB3 2774 0000026817029E6B

Perfect bowl blends.
 E6AA 4172 B162 1166283BA332 2774 0000026A7648FCDE

 9A58 4EAD 9D2B 02BB52A7B549 2774 0000027629F216AD

Port matched to the runners.

 B2E6 4B37 9F63 CD2EE4EEBA44 2774 00000276380B7A8A

Intake ports: casting marks removed, bowls blended, finished with a 80 grit.

 2A24 4BC1 A023 A64B4982E20B 2774 00000274A6B693ED
*all head work was done by me but it was great to have someone with knowledge and experience walk me through everything.

Last edited:

zach44102

BIG TURBO
Joined
Jan 6, 2010
Messages
2,655
Reaction score
1,651
Location
Georgia
Spent this morning finishing up the other head. Heads are done, ready to be milled and hot tanked and reassembled.

Figured you guys might enjoy the sexyness.

 66A8 43E5 9ECE 070F39431AEC 3626 000002F24AE41188
 3B46 4EF8 9DBF EA4F6C999282 3626 000002F243745E8C
 05E5 43C9 A5B1 CEA2F63ACB94 3626 000002F23B3850E3
 6BD7 4251 9B06 3EFC2A78A593 3626 000002F230142EDA
 9567 42FC 9811 23330B8D018C 3752 000002FFDF8E8BAD

Last edited:

sperold

Last to Know
Joined
Aug 25, 2008
Messages
3,753
Reaction score
1,440
Location
Ontario Canada
Do you have access to a flow bench at work? You could do before and after flows to see how much the headwork adds to the capabilities. Anyone have numbers for the flow rate of a stock head? It has probably been charted somewhere, by now.
Nice work, and it would be nice to see how much it improves the situation.
