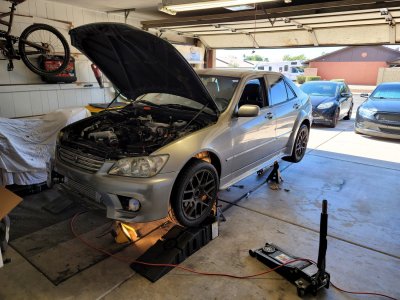

Lexus Update: Worked on the Lexus this weekend. I knew something came apart in the clutch a couple of weeks back. I suspected that a puck came apart and it welded itself to the flywheel. The clutch pedal stuck to the floor which helped my hypothesis. So I dug in.

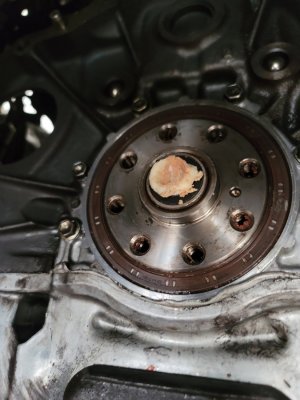

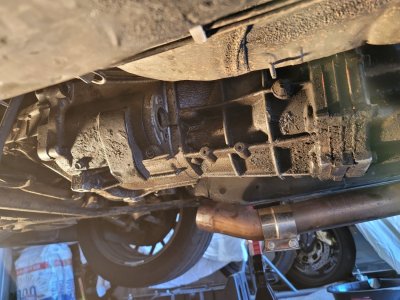

With the trans being so dirty and oily I was fully expecting a rear main seal leak. However, that wasn't the case. I think it is a valve cover. So I will be looking into that as well.

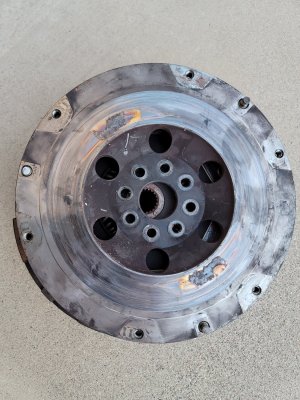

If look you can see two of the pucks did exactly what I thought. However, they welded themselves to the pressure plate and the flywheel. Good times. Lol.






I drained and cleaned up the transmission. Still have to do more work to it to add the slave cylinder as well. Also need to research and see what is the newest and best transmission oil to run in the ole R154.

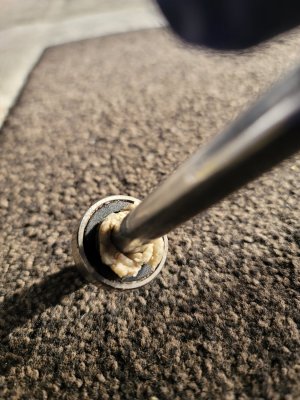

I needed to pull out the old pilot bearing. I used a piece of bread, an extension, and my dead blow hammer. Way easier then the slide hammer tool, or packing with with grease. Clean up was a snap.





New flywheel fastened with ARP studs.


Got the new twin disk set up with the new pressure plate installed.



I still have to remove the master and slave from the car. I have it modify the new Wilwood master to fit the IS300 pedal. I bought a complete kit from a MK3 Supra and knew I would need to modify this. Shouldn't be too difficult for my buddy Kyle. Also going to have him add a pedal stop as well.

So yeah. Hopefully I can have the Lexus back on the street next weekend.



[Bluezone]

Lexus Update: Worked on the Lexus this weekend. I knew something came apart in the clutch a couple of weeks back. I suspected that a puck came apart and it welded itself to the flywheel. The clutch pedal stuck to the floor which helped my hypothesis. So I dug in.
View attachment 83200
View attachment 83201
View attachment 83202

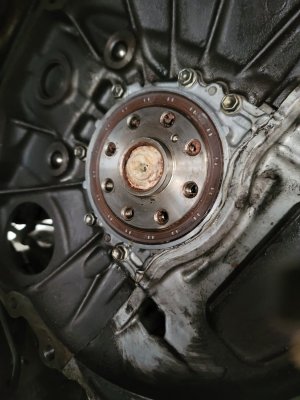

With the trans being so dirty and oily I was fully expecting a rear main seal leak. However, that wasn't the case. I think it is a valve cover. So I will be looking into that as well.

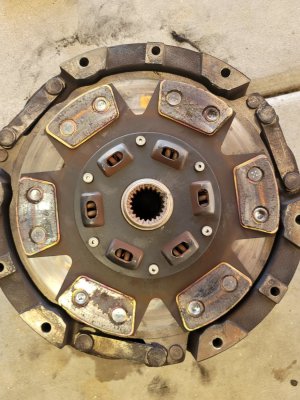

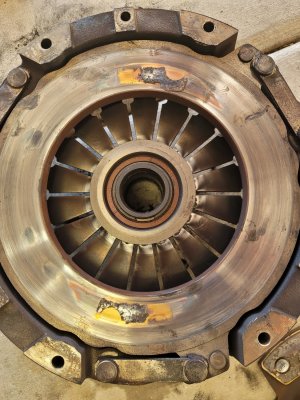

If look you can see two of the pucks did exactly what I thought. However, they welded themselves to the pressure plate and the flywheel. Good times. Lol.
View attachment 83204
View attachment 83205
View attachment 83206

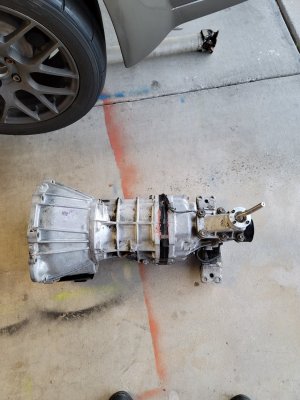

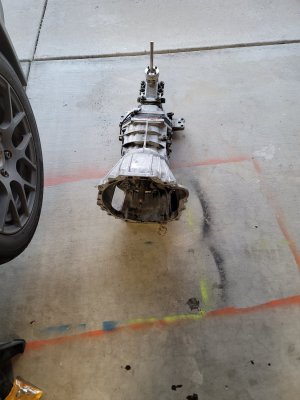

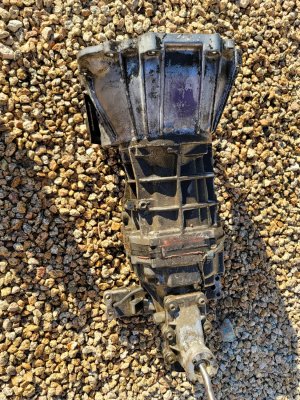

I drained and cleaned up the transmission. Still have to do more work to it to add the slave cylinder as well. Also need to research and see what is the newest and best transmission oil to run in the ole R154.

View attachment 83207


View attachment 83208


I needed to pull out the old pilot bearing. I used a piece of bread, an extension, and my dead blow hammer. Way easier then the slide hammer tool, or packing with with grease. Clean up was a snap.

View attachment 83209
View attachment 83210

View attachment 83211

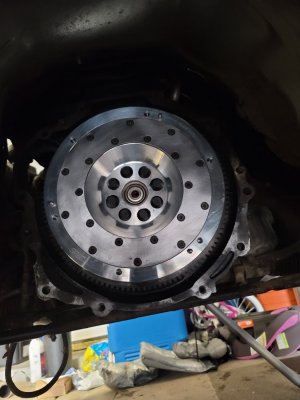

New flywheel fastened with ARP studs.
View attachment 83212

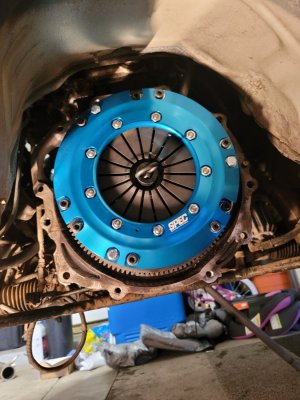

Got the new twin disk set up with the new pressure plate installed.

View attachment 83213

I still have to remove the master and slave from the car. I have it modify the new Wilwood master to fit the IS300 pedal. I bought a complete kit from a MK3 Supra and knew I would need to modify this. Shouldn't be too difficult for my buddy Kyle. Also going to have him add a pedal stop as well.

So yeah. Hopefully I can have the Lexus back on the street next weekend.
