UPR Dual valve catch can seating problem

[Luhsleeper88]

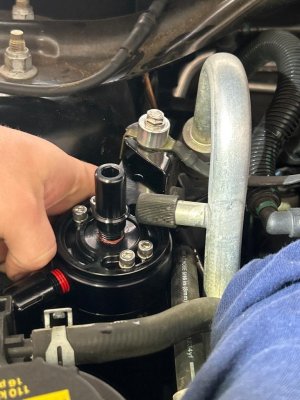

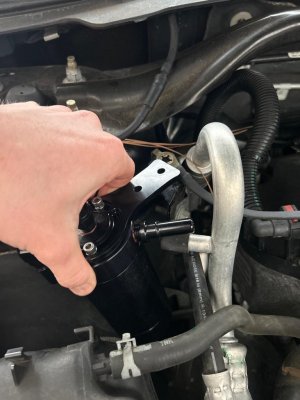

I cannot seat the UPR catch can because of the AC line. In the instructions it has the AC tip on the top. Please help


Sent from my iPhone using Tapatalk



[BradM]

It looks like you can clock (rotate) the mounting bracket on the can. Loosen the bolts and rotate it.



[Luhsleeper88]

It looks like you can clock (rotate) the mounting bracket on the can. Loosen the bolts and rotate it.

We have tried that and there just isn’t a good fitting
We put it at the bottom with the spacing on the top so it’s decent.


Sent from my iPhone using Tapatalk



[BradM]

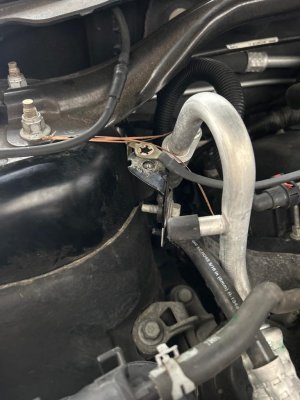

You can also take that spacer and mount it behind the AC line bracket to hold it out away from the can.



[kryptto]

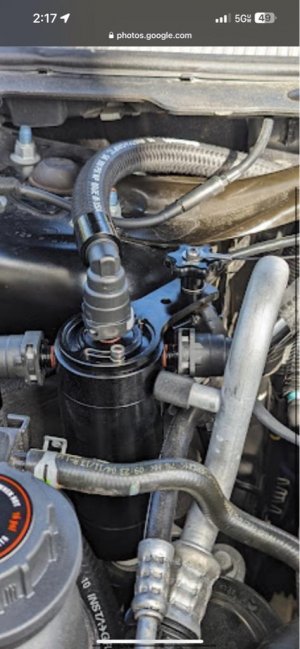

@Luhsleeper88 I am at work - but here you go - I had taken many photos, maybe they can help.



[kryptto]

Call and ask to speak to Steve 561.588.6630 - what year do you have? Mine is a 14



[Luhsleeper88]

Call and ask to speak to Steve 561.588.6630 - what year do you have? Mine is a 14

We had to give up because I have work. I have a 2015.


Sent from my iPhone using Tapatalk



[kryptto]

so the top port of the can goes to the PCV on top of the oil seperator. One of the two side ports goes to the T in the line to the oil filler, the other part of the T goes to the plastic charge pipe near the cold air box. The other port goes back to a connection near the firewall but connects to the Intake. They should have one way check valves pointing away from the catch can.

i hope I made as much sense as I could.



[Luhsleeper88]

@Luhsleeper88 I am at work - but here you go - I had taken many photos, maybe they can help.

It looks like you have the same problem as I do. What did you fabricate to make it work?


Sent from my iPhone using Tapatalk



[Luhsleeper88]

so the top port of the can goes to the PCV on top of the oil seperator. One of the two side ports goes to the T in the line to the oil filler, the other part of the T goes to the plastic charge pipe near the cold air box. The other port goes back to a connection near the firewall but connects to the Intake. They should have one way check valves pointing away from the catch can.

i hope I made as much sense as I could.

Makes complete sense I’m just having problems mounting it


Sent from my iPhone using Tapatalk



[kryptto]

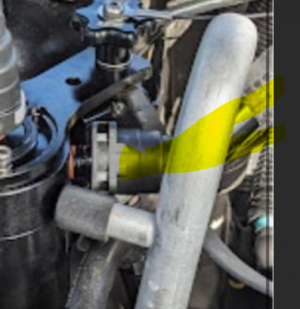

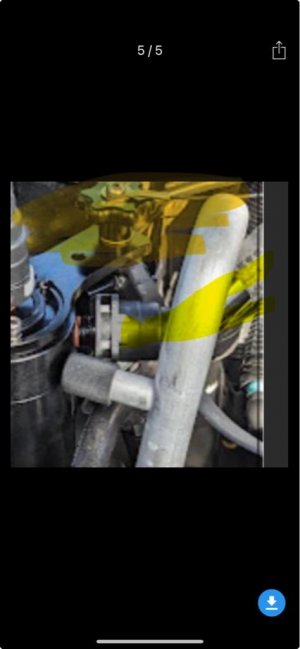

There is a 30 degree connector, I highlighted the portion that goes UNDER the AC line "****"



[kryptto]

Makes complete sense I’m just having problems mounting it

Yeah - u have a '15 and there might be a difference in the heights.... see 15-19' years are a little different.



[Luhsleeper88]

There is a 30 degree connector, I highlighted the portion that goes UNDER the AC line "****"

View attachment 89530

I’m talking about the mount


Sent from my iPhone using Tapatalk



[Luhsleeper88]

View attachment 89531
I’m talking about the mount


Sent from my iPhone using Tapatalk

Is this an add on? I think this is what I need


Sent from my iPhone using Tapatalk



[kryptto]

View attachment 89532
Is this an add on? I think this is what I need


Sent from my iPhone using Tapatalk

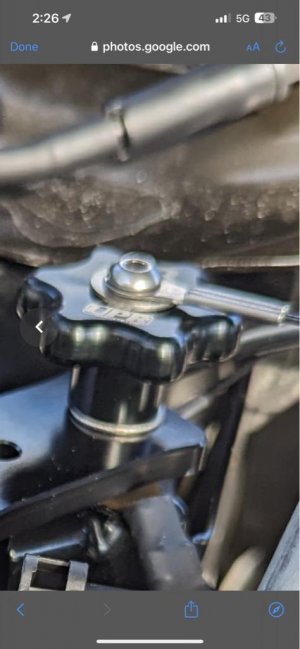

When Steve was shooting the video - he added a washer - you can see it under the thumb screw, the grounding wire is under the bracket, he included a lanyard - so I wouldn't drop the turn/thumbscrew. Otherwise no other parts were added or changed. Did you order the 10-14' or the 15-19' part?



[kryptto]

I called there - Steve was working on a car - I will try back in 30 mins or so.



[Luhsleeper88]

When Steve was shooting the video - he added a washer - you can see it under the thumb screw, the grounding wire is under the bracket, he included a lanyard - so I wouldn't drop the turn/thumbscrew. Otherwise no other parts were added or changed. Did you order the 10-14' or the 15-19' part?

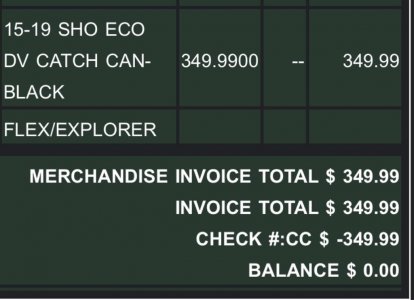

15-19


Sent from my iPhone using Tapatalk



[kryptto]

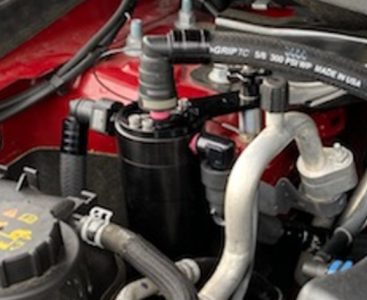

On UPR's site it definitely looks like they "raised" the can - AND used a right angle port.



[BradM]

On UPR's site it definitely looks like they "raised" the can - AND used a right angle port.

View attachment 89534

The A/C charge port is in a different location too.



[kryptto]

The A/C charge port is in a different location too.

Yup, on mine you would need to remove the CC to even open the port cover.
