AC Evaporator and Heater Core / and Blend Door...then the rest

[shorage]

Good afternoon everyone,

So, i will be tackling a Dashboard swap in the near future and i just wanted some input on Evap Cores and heater cores, thoughts on different brands. I need the whole AC system. At the moment, i was just going to replace the Evap and Heater Core and blend door because i am already behind the dash, and later on, install the complete AC system. I am trying to come up with a complete list as well, i have no parts. Only thing the car has is a evaporator in unknown condition. It was open to the elements, so probably unwise to reuse it.

Anyone have a diagram with all the parts needed?

Autozone has the following; Are these recommended? Anyone use them? Any suggestions?

Stage 1 (When dash is out)
Four Seasons A/C Evaporator Core 6131N
Spectra Premium Heater Core 398315
Blend door (suggestions on sourcing this?)

Stage 2 (When time and money allows)
Santech Kit A/C Kit
Spectra Premium A/C Condenser 881148
MISC Parts (Sensors, etc)

Thanks Everyone. I haven't been this excited in a long while.

Frank Costa (SHOrage)
3.2 And Quaifed
89 Titanium Grey
90 Dash
MODS-
BBB / 3.2 /w 3.0 Heads
Tokico / Eibach /H-Brace
Solid Delrin Subframe Bushings
Subframe Connectors
Jose SHOrt Shifter
TPR Everywhere
Solid Motor Mounts



[NoSlo]

You want to/need to convert to r134a refrigerant, which means replacing all the o-rings with green compatible ones, and replacing the accumulator/dryer. The rest of the tubing and components should at least be back-flushed with dry air or nitrogen. The evaporator and condenser aren't suspect for replacement unless they've been open to dirt and such, or suffered a compressor failure.

I'd try to get the most parts you can used. Blend door and many other parts can come out of any Taurus. Once again, seeing who on the forum is parting a car and might have pulled the dash, as this is crazy labor even in a wrecking yard, and crazy shipping fees to box it all up.

The connectors need a special spring-clip removal tool, you can get a 6-pack of plastic ones pretty cheap.

The Ford part numbers for 89-95 evaporators are E9DZ19860A, F3DZ19860A. This gets you two available on RockAuto: Four Seasons 54534, and SPECTRA PREMIUM 1054534, (which doens't come up by car model).

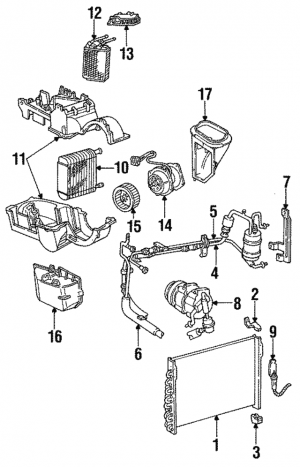

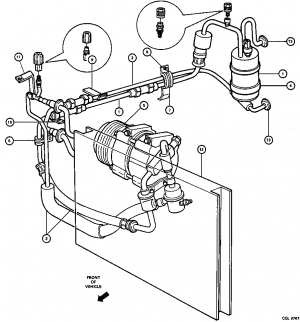

Here's some diagrams to remind you of all the parts, the first from here for 92-95 part numbers, the rest from the 92 service manual:

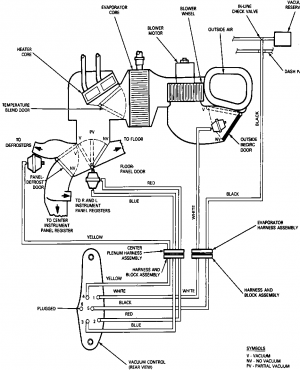

EATC vacuum and vacuum motor components:

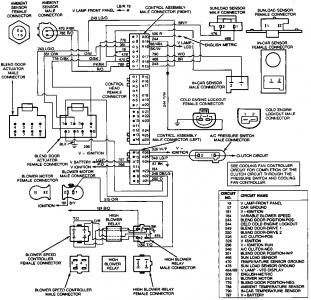

EATC sensors and wiring, 1992. I expect that old-style EATC and car harness may diverge significantly from this, but electronic documentation and even parts listings online is sparse for 30 year old cars:



[shorage]

Nice. Great info here! Thanks!
