wiring diagrams please

[bjorkmae]

I am replacing the stock radio in my 91 SHO. I bought the car and it didn't have a radio or the amp behind the back seat. I cought the amp and the radio from the same donor wagon, it was a 92 or a 95. All wiring colors and plugs match up with the amp so I already installed the amplifier. But the last owner cut the wiring plug in the dash for the radio itself. I grabbed the wiring plug from the donor car but unfortunately not all of the wires match up color to color. The square plug that goes to the amp in the back fits fine. If I could get a diagram for both a 91 SHO and a 92 and 95 wagon. Thanks so much.



[hawkeye18]

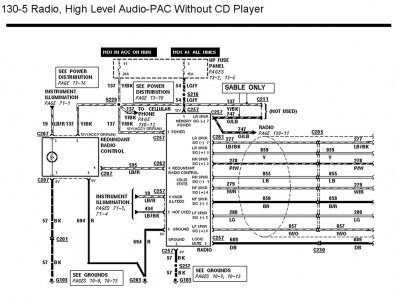

Hope this helps.



[the4biddendonut]

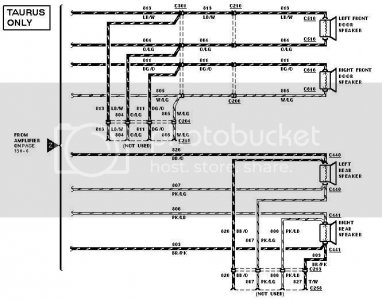

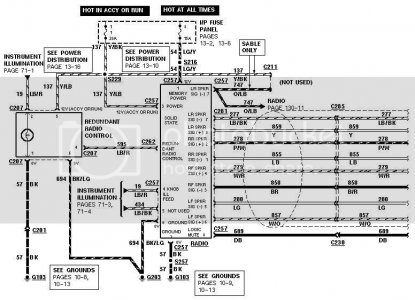

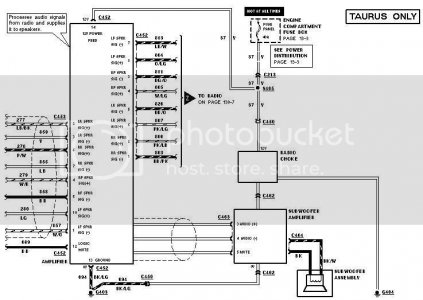

This is the diagram of a premium sound system from a gen2, without the the subwoofer in case you need it. I think it maybe the same as the diagram up above, but I'm too tired to compare the 2 right now.



[bjorkmae]

Thank you sir I will let you know if it works out.



[hawkeye18]

Keep in mind that the wiring labels are backwards at the radio. The LR and LF + and - OUTwires have backwards labels. Just FYI...



[bjorkmae]

Thanks got it working now. Lots of wiring repair was needed.
