minguns wiring question ( alt pics included)

[NovaSS]

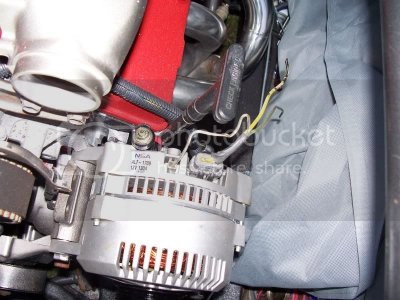

well its been a while since I pulled the harness and with help of a factory wiring diagram I have mapped most of it out, except one post on top of the alternator


doner car....

1994 SHO mtx

its the post next to the nsa sticker, ( I assume it goes directly to battry positive)

the yellow/white goes to a fuse link, power distribution box then sarter solenoid.

the green/red goes to ignition.

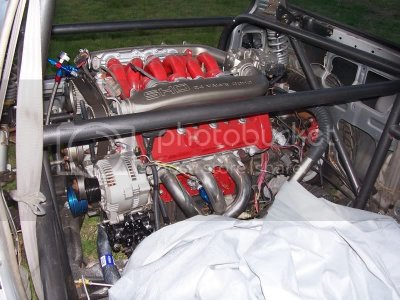

over all pic.....



[krednjen]

Main charge post. Straight to hot side of battery, or main feed on the starter, may be more convienient. Either way, dosent realy make a difference. You could even have a power distribution block, if that suits you better. Long story short.......just juice man; just juice.



[shomtx95]

i would like to see some more pics of this project



[Phoenix]

Dont want to contradict but on mine (94 mtx wirering) that cable goes in the wirering over the rad, back to the fuse box pole , then from there it goes to the starter then from there it goes to the batt.



[NovaSS]

Dont want to contradict but on mine (94 mtx wirering) that cable goes in the wirering over the rad, back to the fuse box pole , then from there it goes to the starter then from there it goes to the batt.

Your not contradicting, as per the factory thats the proper route and it works. Since Im not using the factory power distribution box Im just going to jump to the starter then to the battery.



[NovaSS]

i would like to see some more pics of this project

heres a few of major hurdles...

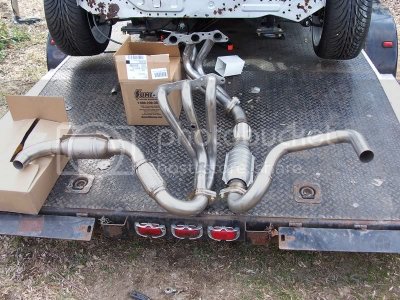

exhaust , minus mufflers.

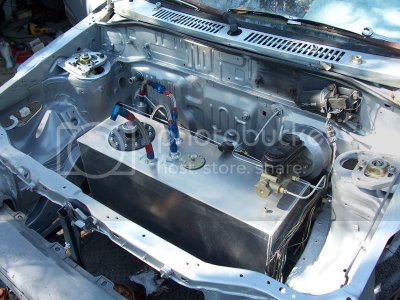

gas tank mocked up..

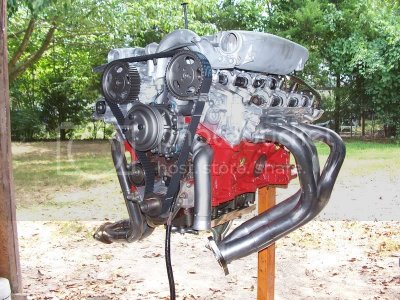

3.0 bored to 3.2
3.2 injectors
shonut +20 cams
over sized stainless valves
3 angle valve job
FPS valve springs
bronze guides
minor bowl cleanup.
BBB
BBB air horns
mild port matching, most other work in primary tubes
aluminum fly wheel
aluminum underdrive pulley, power steerring and A/C delete.
stainless headers

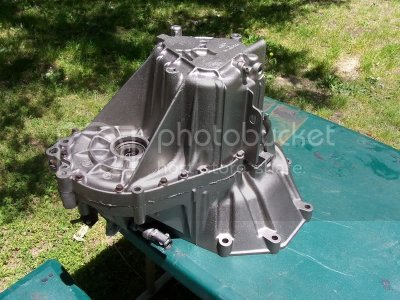

tranny after quaife install..

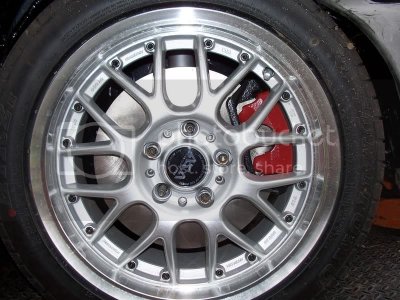

11.6 brake upgrade on all 4 corners. custom struts, springs, adjustable camber/ caster plates.
