Need wiring digram for 5 wire clock

[whiteman_01]

Hello, i am looking for a wiring diagram for the 5 wire clock. I want to get the clock in my 92 working, but i have a newer gauge bezel that has the 5 wire in it. I did a search but found the file was too big to post and it was email'd to everyone who needed it.
Thanks



[SHOZ123]

Looky at this



[Minnesho]

I thought I sent you the diagrams? I'm not sure what else you are looking for.



[kevinspann]

Looky at this

Paul, do you still have this wiring diagram somewhere?



[whiteman_01]

Wow, bring back the dead.



[Vnuk1]

No doubt!



[kevinspann]

Needed wiring diagram for a 92 to black 93 interior swap

It didn't come up initially, but I found a link to the pic that would work and posted it for anyone else that might want it.



[SHO1]

Wow, bring back the dead.

Well, since it has been, did that little red X ( ) help you fix your clock?



[kevinspann]

Going from a 5 wire to a 3 wire clock is easier than going from a 3 to 5 wire clock - I know jelloslug did it, I guess he just added the wiring that he needed.



[SHOZ123]

You can go here for the pic.

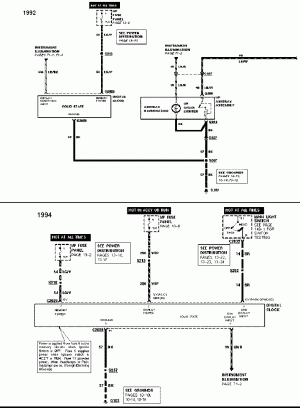

https://www.supermotors.net/getfile/450013/original/clock-wd-3-wire-vs-5-wire-old-sho.gif

Well if this doesn't work you're just sol.



[kevinspann]

Still not working...



[SHOZ123]

https://www.supermotors.net/getfile/450013/fullsize/clock-wd-3-wire-vs-5-wire-old-sho.gif
