BAH! electrical connections!

[ilikepoultry]

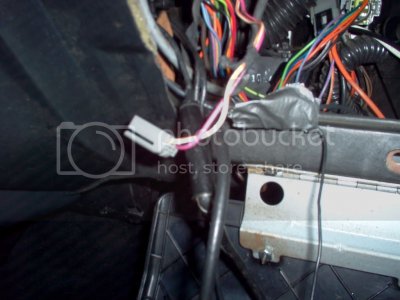

i have an electrical connection on the passenger side
well
i think that's where it's supposed to be
i've been re-routing wires

anywho i have pics of it and was wondering if anyone knew what it was and where it goes
it's got two wires...

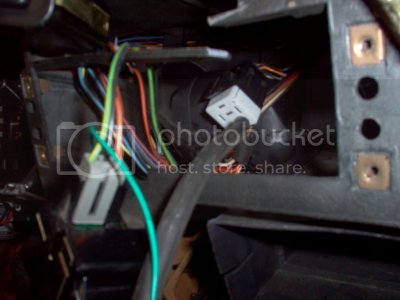

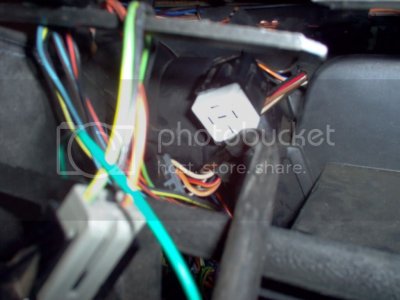

then i have what looks like a relay?
it's behind where the eatc should be
white
5 holes for prongs
any ideas?








and finally
i have two heater/air hoses out of place
no idea where they should go
i forgot where they were supposed to, and no gen 1's to take a gander at

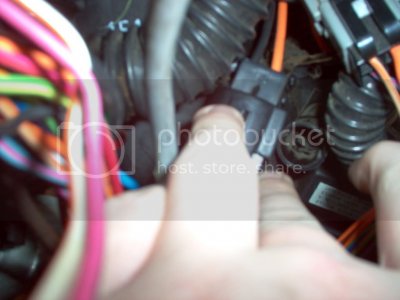

and then the one kinda between my fingers here






any help appreciated
trying to get this thing completely back together so that it leaves my possession in good shape and completely good working order



[hawkeye18]

umm... wow, you've got me stumped. I'm sorry. I tried, but the best I can come up is, maybe sunroof relay or auto-lamp relay? I've no clue on the other two. I hope somebody else can help...



[ilikepoultry]

BUMP!

need car fixed today!

please help me if you can!



[SHOZ123]

Pretty obvious where that heater hose goes.

As far as the plugs, what's laying around unplugged? There are numerous connectors that aren't used on almost all cars. Some don't have all the options or the engines are different.



[ilikepoultry]

if the heater hose was obvious, i wouldn't be asking
those two do not connect to one another
and i can't see every connection on the car
so yes, if i saw one that wasn't connected and dangling, i'd find it's other half
the problem is i don't
hence i am asking
:thankyou:



[SHOZ123]

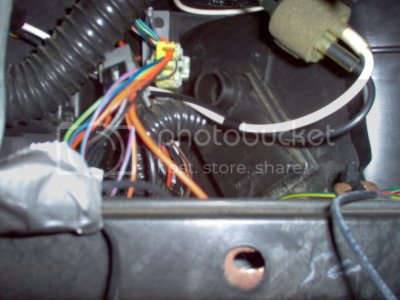

One of the hoses goes to the port on the hard black plastic part in the picture. They do not connect to another hose. I believe this is for the in car temp sender.



[Eric VerValin]

I think thats right too... The hole on the right hand side connects to the ''sho'' thing in the dash. Let me pull my glovebox and get ya a pic if I can..


Edit... well I was right about the hose on the right being for the temp sender, the one on the left goes back down toward where the fan sits in the heater core housing. Without pulling my radio / cd player I can't see the other ones, but the only big relay I see is just to the right hand side of where the head unit would be at. Wish I took more pics of when I did my heater core, pulled the whole dash when I did it, but if you got everything hooked up on the far right side by the glove box, then your connector has got to be close by somewhere, probally just hiding from ya.

Mirrors, and little flashlights will be your friend.

Also check out these... Bizzy knows what connector it is..


http://www.shoforum.com/showthread.php?t=44695


http://www.shoforum.com/showthread.php?t=81287

Enjoy, and thank them when your finished...



[ilikepoultry]

and now i sound stupid

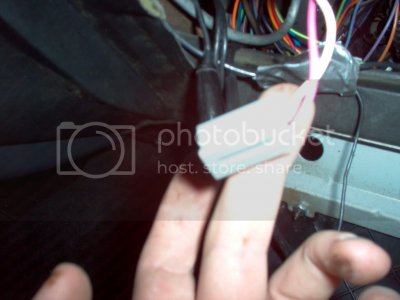

i can't find the car end of the connection for the light on the back of the center console



[Eric VerValin]

lol no actually you don't sound stupid.. this process sounds quite ''normal'' for doing anything with the dash... lot of things to miss, while your body is contorted in strange ways.. cross your fingers about your ground wires... I added a few, and tested with my multimeter just to be sure.



[firstgen89sho]

the first connector looks like it is for your EATC in car temp sensor

the 2 hoses should be striaght forward, one is larger than the other

as for that relay, I have never seen one there before, and I have torn a few dashes apart, it could be for your fog lights.

the connector for the center console rear light is underneath the console itself, you have to remove the console to access the connector



[ilikepoultry]

problem's been solved - well... one connector and one hose
the guy who gave me this "complete" dash removed the entire temp sensor - bracket and all

now all i need is where that larger hose goes to...
i can't see anything in there, as all the wiring's been moved around and stuff's been added
