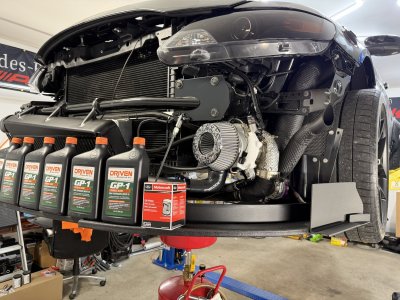

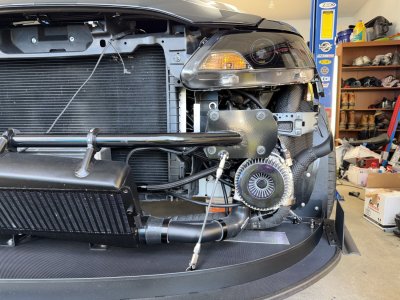

That’s a good link.There are differences in fuse box wiring and locations between years. It’s a 20 amp mini fuse (#69) in my 2017 called vehicle power 1. The ECU ground itself reads very low ohms to battery negative so I think it’s fine. There is something else somewhere I will have to figure out.
I’ll leave this here, it’s the ultimate fuse box diagram IMO:
Ford Taurus fuse box diagrams for all years - StartMyCar
www.startmycar.com
If you need more diagrams, search eBay. I bought the 2010 electrical diagram PDF for about $30 and the seller emailed me the link. It’s over 500 pages.
Since yours is a 2017, I’m sure there’s a 13–19 version out there. You’re welcome to my 2010 diagrams for free, but I’m not sure how much would transfer. I’m sure some of it is the same, but I’d rather have the exact year range if possible.

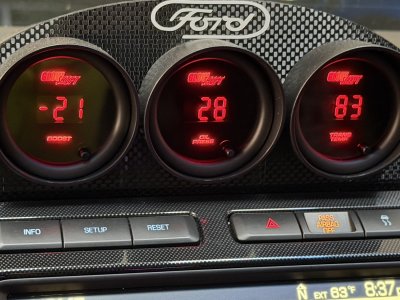

Also, ohm checks are nice, but voltage testing is better when you can. Check engine off / ignition on, then engine running. You can load the circuit too: HVAC on, A/C on, rear defrost on, etc. Get some current flowing and recheck.

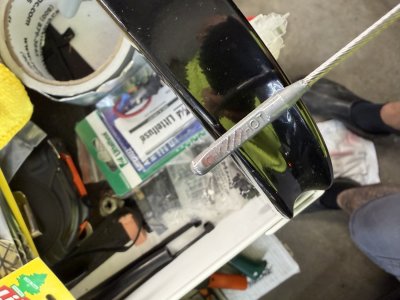

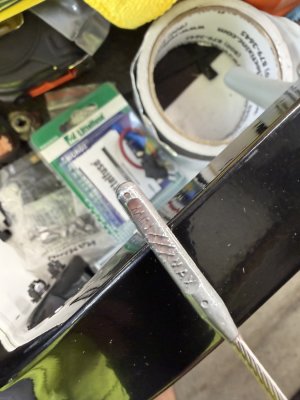

I originally gave myself fake-good test results by putting the multimeter black lead on battery negative and touching the red lead to the top of my ground strap. Sure, it could show 0.00V, but what was I really proving? Basically that the top of the strap was metal and referenced to ground.
That did not prove the bolted connection underneath the lug was clean, or that current could actually pass through the painted/powder-coated surface under load.
The better test is voltage drop across the actual connection while the circuit is loaded. Put current through it, then test from one side of the connection to the other. That’s when bad grounds finally stop lying.
You can absolutely have “good” meter results and still have trash grounds if you’re not testing the actual current path under load.
