Trailer Wiring Harness Diagram/Instructions

[platoribs]

I've been hauling my motorcycles around on the back on Bluie for years and recently installed a class II in Green, bought a nice looking splice kit only to hook it up and find the wiring harness isn't working. Pretty screwie, making me think its just defective internal.

Does anybody have a wiring diagram or decent instructions so I can get this square b/4 a trip down with a new smoker and big TV for my Brother and Son respectively.

TIA,
Plat0/Chris

Just found this: http://www.etrailer.com/faq-wiring.aspx

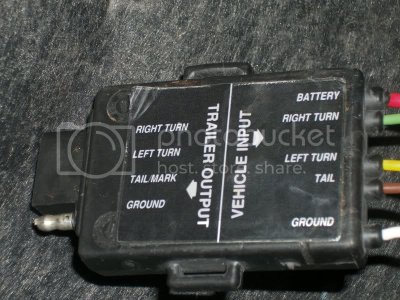

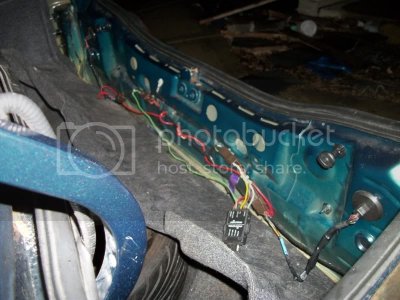

The splice kit I have is powered. I take it from the artical this for a light or winch, etc on the trailer. since I don't have these can I just cut out the converter block that the splice connectors feed from the vehical side and power the trailer lights from the light wire in the trunk.




I'm thinking I can just cut the wires, remove the black device, tap it into a 4-wire flat plug and I'm good to go... anybody got an Amen?



[220ksho]

Tapping directly would only work if the turn signals are shared with the brake lights, as they are on the Gen I's. I think the Gen II's have sovereign turn signals, which means you would need a converter to split the brake light feed into two turn signal outputs. It looks just like yours, except that the "battery" feed is labeled "brake".
