SARC pinout

[jelloslug]

Does anyone have a pinout for the SARC module with the pin locations?



[kevinspann]

Bump for this.



[Mr Anonymous]



[kevinspann]

Chris, this is the SARC module I have, from a 97 (F7DF-18B008-AA) and it doesn't seem to match that at all.

Thanks



[Mr Anonymous]

These are the only other diagrams. There is no pin-out for the C450 connector.



[kevinspann]

Actually I see it now. The drawing of the pinout is the gray plug, unplugged from the module. I was looking at it from the wrong side. I don't work with this stuff all the time, so I didn't even think about that.

Thanks Chris.



[SHOZ123]

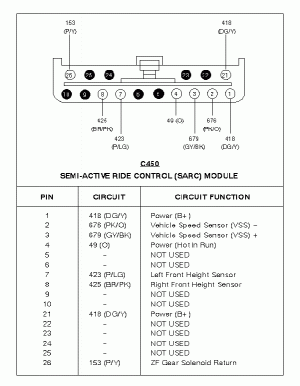

C450
