MTX Teardown help.

[TheVancen]

Been trying to find literature on how to tear down an MTX-IV.
Can anyone point me to a manual or forum post? I'm looking through the forums now, but maybe you'll find it before I can. Having never taken a tranny a part before I'd rather not damage something out of ignorance.
Car is a 91+ if that matters.



[luigisho]

look for a video from shonut. I think the quaife install has a disassembly video part. Shoot Josh at http://www.shonutperformance.com/
an email or message through the board to verify this



[zoomlater]

on ebay you can find the Helm's Ford manual for different year Taurus, it has a section 7-03-1 Transaxle, Manual-MTX IV

1994 Ford Taurus and Mercury Sable Original Shop Manual Repair Service SHO | eBay

This factory information shows you how to repair your vehicle. With step-by-step instructions, clear pictures, exploded view illustrations, schematics, and specifications, you will have the information you need to get your project on the road and keep it there. Buy now to own the best manual for...

www.ebay.com

OEM Digital Maintenance Shop Manual CD for Ford Taurus, Mercury Sable 1994 | eBay

Find many great new & used options and get the best deals for OEM Digital Maintenance Shop Manual CD for Ford Taurus, Mercury Sable 1994 at the best online prices at eBay! Free shipping for many products!

www.ebay.com



[TheVancen]

on ebay you can find the Helm's Ford manual for different year Taurus, it has a section 7-03-1 Transaxle, Manual-MTX IV

1994 Ford Taurus and Mercury Sable Original Shop Manual Repair Service SHO | eBay

This factory information shows you how to repair your vehicle. With step-by-step instructions, clear pictures, exploded view illustrations, schematics, and specifications, you will have the information you need to get your project on the road and keep it there. Buy now to own the best manual for...

www.ebay.com

OEM Digital Maintenance Shop Manual CD for Ford Taurus, Mercury Sable 1994 | eBay

Find many great new & used options and get the best deals for OEM Digital Maintenance Shop Manual CD for Ford Taurus, Mercury Sable 1994 at the best online prices at eBay! Free shipping for many products!

www.ebay.com

Thanks man, that's exactly what I'm after.



[NoSlo]

Here is the 1993 shop manual, slow-download PDFs from a Russian site. http://www.yunost.ru/docs/Ford-service-manual/Group 07/

Group 07, section 07-03 of the manual is MTX IV transaxle for SHO.
Group_07_sec_03_part1_small.pdf
Group_07_sec_03_part2_small.pdf



[sdpatt]

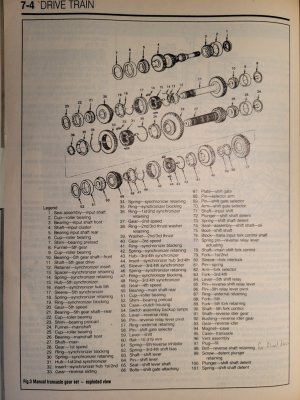

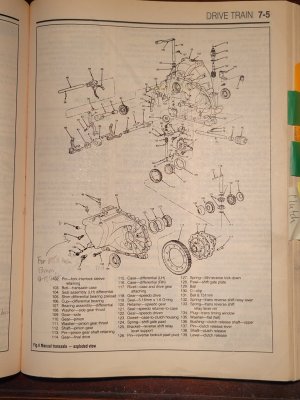

I replaced the synchronizer blocking rings using the detailed exploded views, with individual parts labeled, in the older Chilton's Ford Taurus/Mercury Sable 1986-92 Repair Manual, Part No. 8251 (see attached images). The later Chilton's Taurus/Sable 1986-95 Repair Manual, Part No. 26700 did not include these detailed exploded views.
