Camshaft Sensor - Missing parts?

[rucorey]

I'm working on a race car project powered by a 92 SHO (I think). It wasn't using a CMS and had a bracket bolted to that location instead. I ordered a new sensor and seal, but there must be a part missing because the sensor does not sit flat against the adapter. I've looked at all the diagrams I can find, but nothing shows me any parts that may be bolted to the assembly or between the assembly and the sensor. IS there a ring adapter or something connected to the cam? Does anyone have a pic with the sensor removed?

This thing is a serious frankensho and I have zero knowledge of its history. It's been a fun year digging into it. Will post some pics tomorrow. Thanks in advance!



[rucorey]

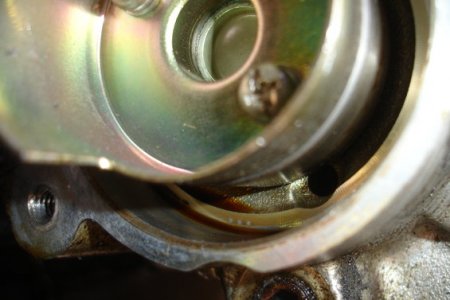

Here are a few shots: It looks like I need a cam vane? Bonus if you know what the car is.



[SHO Continental]

Yep, there's supposed to be a vane on the end of the cam.



[rubydist]

you also appear to be missing the adapter that bolts onto the head and to which the cam sensor mounts. it looks like a little donut with 2 ears on it.



[kevinspann]

Ultima?



[rucorey]

Ultima?

Good eye, yes. It's one of the early prototypes. Still working on getting it started. Lots of sensor issues...8)



[Off Road SHO]

Cool. Always wanted to do one of those with the SHO motor. What are the three braided hoses going into the side of the block for? Is it using a Medeola, Fortin, Albin or Porsche transaxle?

Tom



[rucorey]

Those braided lines are for the dry sump. That's the tank on the left side of the first picture.

Also, the transaxle is off a 915. I'm not sure what shape it's in. I guess that will be phase 2. I'm using the megasquirt V3 and still haven't gotten it running. I'd like to run sequential w/ LS1 coils.

Great video! Your setup sounds awesome. Do you have any big pics of the motor? Are you running a standalone?



[Off Road SHO]

No, I'm not smart enough to use the Mega Squirt on a SHO motor. I'm using the stock computer with an aftermarket chip from Superchips plugged into the back. PM me you email and I will send some pics of the motor, just polished, with Eaton Blower on her and with the current turbo setup. What is a 915?

Tom
