Huge! new intercooler pics/progress

[TT SHO PROJECT]

well finaly got my monster ic in... started working on mounting it... so heres some new pics
mock up

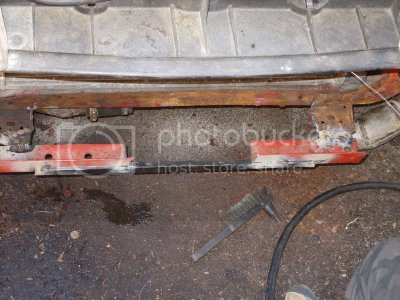

mounting

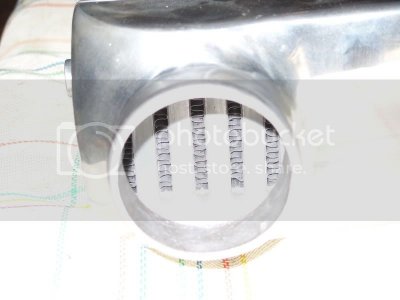

inlet pics



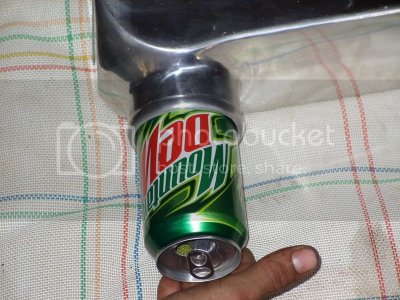

and a nice size comparision to my 6 foot 1 tall friends leg lol



[TT SHO PROJECT]

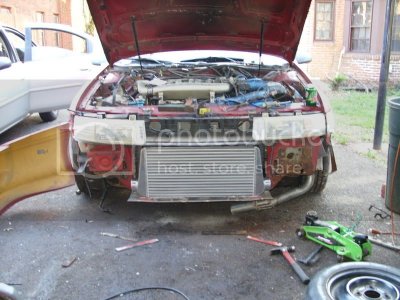

and finaly its mounted and the bumpers back on for a test fit... this is all you can see!!
sleeper! w00t!

oh yeah forgot a pic... dunno if u can see but i made a "skid plate" something that may help air flow... look under the ic.



[LJRuddy]

Looking good. Id rock that SHO any day.



[TT SHO PROJECT]

thanks... so would i lol

Looking good. Id rock that SHO any day.



[NoSHOAllGo]

That thing will be done in no time. Nice pics and good luck on the rest of the build.



[TT SHO PROJECT]

That thing will be done in no time. Nice pics and good luck on the rest of the build.

Thanks, right now the weather got bad again so i gotta wait for the rain to stop before i can finish up some lil odds and ends.. but soon very soon she will be on the road again.... but of course as soon as shes done im stripping the paint off welding in some new metal where its needed and repainting the thing... sigh.. always doing something but it will be worth it in the long run.



[Bringetto]

sick looking, that thing is huge, and should keep it nice and cool, ever think about a intercooler sprayer?



[TT SHO PROJECT]

sick looking, that thing is huge, and should keep it nice and cool, ever think about a intercooler sprayer?

yes and no.... not for this car atleast... i do have a t70 turbo thats going on a thunderchicken i may concider it for that project just not this one.... im not gonna be running enough boost to really need it... 15psi MAX tho im shooting for 14 iv ran 10psi b4 the ic so 14 shouldnt be that hard todo as long as i still have fuel left and that is the big question cuz i really dont know... at 10psi she still ran rich uptop but 4more psi may be too much of a jump... but we will see



[NCTaurusSHO]

what size injectors are you going to run? and are you going to change the internals? because I am running 15lbs of boost on the second turbo sho we are doing now, and I don't think the stock internals are going to handle more than that. they barely handle 10lbs and that is with proper tuning. What all are you going to include in your build. (like inj. size, fuel pump. etc?) BTW, the intercooler looks good. good luck

ashley



[SeanMc]

what size injectors are you going to run? and are you going to change the internals? because I am running 15lbs of boost on the second turbo sho we are doing now, and I don't think the stock internals are going to handle more than that. they barely handle 10lbs and that is with proper tuning. What all are you going to include in your build. (like inj. size, fuel pump. etc?) BTW, the intercooler looks good. good luck

ashley

I think pistons will be the only problem. There was a high hp sho running around with A LOT more than 15psi

It blew up because it went lean up top :cry:



[TT SHO PROJECT]

right now im running a pure bone stock 3.0... stock injectors/pump/everything before i upgrade anything i want to find the limets of the stock stuff so for now its a stocker... but im sure ill find the limets shortly after getting her on the road... i plan on upping the boost 1 or 2 psi at a time and keeping eyes and ears on things till i cant safely go any higher.... once i find the limets if im not happy im gonna get bigger injectors a fpr and 255hp pump. oh yeah and thanks iv been redoing alot of stuff on the car for the past week. sofar so good havent run into any real hickups yet.

-Turbo Bob
p.s. Note its not Boost that i have to worry about its how much cfm i can push into the motor... sure boost raises the static compression ratio but im not planning on running insain amounts of boost.... just getting the most outta the cfm i can push.

what size injectors are you going to run? and are you going to change the internals? because I am running 15lbs of boost on the second turbo sho we are doing now, and I don't think the stock internals are going to handle more than that. they barely handle 10lbs and that is with proper tuning. What all are you going to include in your build. (like inj. size, fuel pump. etc?) BTW, the intercooler looks good. good luck

ashley



[TT SHO PROJECT]

I think pistons will be the only problem. There was a high hp sho running around with A LOT more than 15psi

It blew up because it went lean up top :cry:

poor sho yeah we will see what i can do with this car with out nukeing it.. only time will tell if everythinsg gonna hold up or not... and if it does then sweet cuz i like to beat the liveing tar outta my cars once something breaks then i know what needs to be improved on... but so far the only things i broke was my motor mounts but they are getting welded solid really soon. and im ditching the tq struts i HATE the tq struts



[SeanMc]

poor sho yeah we will see what i can do with this car with out nukeing it.. only time will tell if everythinsg gonna hold up or not... and if it does then sweet cuz i like to beat the liveing tar outta my cars once something breaks then i know what needs to be improved on... but so far the only things i broke was my motor mounts but they are getting welded solid really soon. and im ditching the tq struts i HATE the tq struts

I wish it would hurry and get back on the road!

Josh at SHONut is running more than 15psi with his vortech on a bone stock high mileage motor. He's in the 12s .



[TT SHO PROJECT]

12s??? heck yeah! hehe... yeah im im workin as fast as weather will let me... plus i dont want to rush it too much dont want to f#$@ something up or over look something... but reall soon she will be ready fer some road pounding

I wish it would hurry and get back on the road!

Josh at SHONut is running more than 15psi with his vortech on a bone stock high mileage motor. He's in the 12s .



[SHOMurph]

Looks good.

thinking it needs a little paint though.



[TT SHO PROJECT]

yeah i wont show the body.... its a wreck... needs some body work and a Much needed paint job.. but hey got her fer 1 grand cash.. couldnt pass it up.

Looks good.

thinking it needs a little paint though.



[Phoenix]

I wish it would hurry and get back on the road!

Josh at SHONut is running more than 15psi with his vortech on a bone stock high mileage motor. He's in the 12s .

Not stock fuel systems though./injectors/pump...



[TT SHO PROJECT]

yeah i was figureing that much....

Not stock fuel systems though./injectors/pump...



[Toolman]

Sorry, but I can not agree with breaking stuff intentionally, just to find the limits of the stock components, when the limits are well known. That is not called R&D, it's called waste.

There is way too much information available through this community network for people to go out and blow up engines for the sake of it. I am all about more turbo SHO's on the road, but lets keep them on the road by building them correctly, not by ruining perfectly good engines. Get some fuel upgrades (they are not that expensive) and some air metering upgrades, and make your time and effort worth something.



[TT SHO PROJECT]

you see there toolman... i like to break stuff... it gives me a challange... plus it gives me something to do... there have been cars that i have built trying to break them with no success so hopefully this will be one of them (tho like i said before i already broke something... the mounts) but so far so good... this is like a game for me... i build them... then drive them to destruction... sometimes they break other times they keep on going... now im not saying im just gonna keep upping the boost and running her hard expecting something to blow up lol... im doing it with in limets just a lil at a time keeping an eye and ear on things... if i notice something going wrong ill stop right there check her out make sure everythings a ok then back something up (ie boost or timeing ect..) and test her again till im happy with the power/reliability of the setup.. im aiming for a good ballance between the 2.

Sorry, but I can not agree with breaking stuff intentionally, just to find the limits of the stock components, when the limits are well known. That is not called R&D, it's called waste.

There is way too much information available through this community network for people to go out and blow up engines for the sake of it. I am all about more turbo SHO's on the road, but lets keep them on the road by building them correctly, not by ruining perfectly good engines. Get some fuel upgrades (they are not that expensive) and some air metering upgrades, and make your time and effort worth something.
