Rust belt ABS brake line bundle pics

[beaudeen]

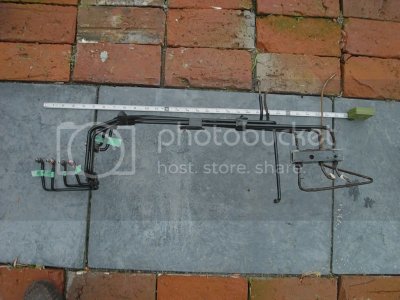

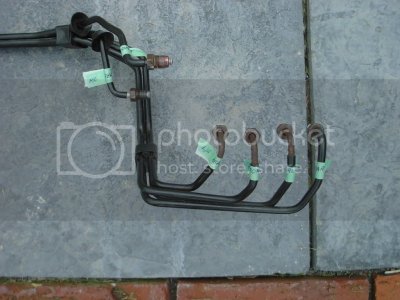

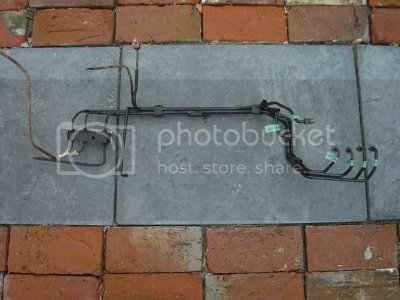

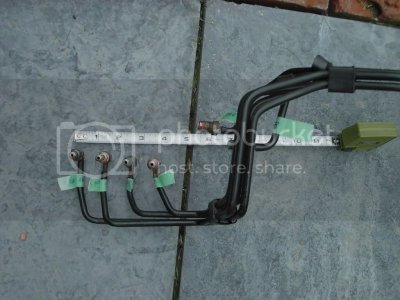

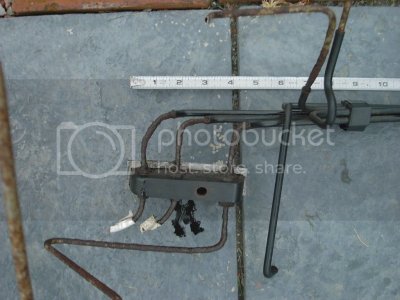

Couldn't find any good pics of the ABS brake line bundle, so I took some of the one I removed..just thought I'd post them ..I looked at a 95mtx a little while ago near Toronto..car was near mint,even the window channels, but his brakes lines gave out the same spot..top of the distribution block..take a look at yours next time your under the car..!!



[93rev2sev]

There's a place here in Metro Detroit that will take that intact bundle and scan it in with a 3d scanner. Their computerized bender will then replicate your lines exactly.

http://www.inlinetube.com/



[mrecoolgar]

I had to replace that section on my rusty Plus.



[frosho]

Ditto, my green 94 looked the same.



[F-22 Raptor SHO]

Been there did that. Never again in arizona.



[tompumped]

Thanks for the pics, now you got me thinking. When I got my car I replaced a number of compression unions that someone used on the brake lines. I hope that I have the right lines connnected. I guess I would've noticed, because i'd imagine the car would pull while braking. I also don't have a distribution block anymore I didn't even know there was supposed to be one.



[fast Ed]

We did those on my 95 MTX as well when it got the makeover this spring. They were pretty nasty.


cheers
Ed N.



[blue2ndgen]

One of the many reasons why I converted it to Non-ABS.



[gmail]

if needed i actually pulled off a good set including the abs pump because the lines looked so good.
they just been sitting in a box and thats more then likely all they will ever do since i dont like abs



[93sho3.0L]

Deleted.



[greengiant]

mine will need it soon, i'm really not looking foward to it



[General Geoff]

Sorry to bump a two year old thread, but I just recently purchased a 1993 SHO 3.0l, and blew out a brake line, which happens to be part of this bundle. Anyone know of the best route in going about replacing them? I figure it's best to replace all the lines since if one blew, the rest aren't far behind. Does anyone sell these bundles new or used? If not, what's the most cost-effective or labor-effective way to replace these lines? I'm hoping to do the work myself, but I've only dabbled in brake line work before (replaced a master cylinder once, didn't need to replace any lines). Thanks for any help guys! BTW, the OP's pictures are invaluable for getting a real look at what needs replacing.



[Racer X]

www.shonutperformance.com

Josh now offers replacement brake lines for the Gen 1 and Gen 2 ABS cars, including that bundle.



[General Geoff]

I looked under brake components, and couldn't find that bundle... just generic stainless hard lines?


edit; I just read the associated thread about the lines... that cleared it up, I think I might just order a full set of lines... thanks for the help!



[General Geoff]

Ok next dumb question, is there any possible way of installing all those prebent stainless lines without removing the engine (or other major surgery)? It looks really straightforward with the engine out of the car, but with everything still in the engine bay, the clearances around those lines are pretty tight (took me a while just to find a vantage point to see where I ruptured a line). Anyone who's done the lines before, have any advice? What I need to remove, what I can keep in?



[Racer X]

Just remove the airbox and ABS controller, you don't need to remove the engine or transmission.

Yeah, it's tight, but then again, what isn't tight in a SHO engine bay??



[General Geoff]

true that.

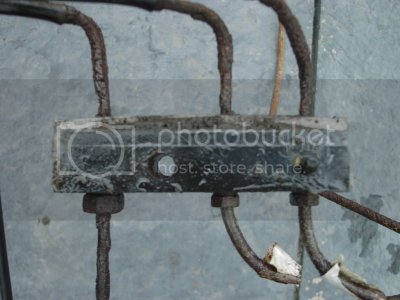

What exactly does that black "distribution block" do? Does it have any internal workings other than just a straight-through conduit for the three lines?



[ShoGun_2012]

Where can I get this part From??????



[Racer X]

Where can I get this part From??????

www.shonutperformance.com

Josh now offers replacement brake lines for the Gen 1 and Gen 2 ABS cars, including that bundle.

Presented without comment...



[General Geoff]

Since this thread has been bumped, I just want to comment that the SHONUT stainless brake lines are awesome. It was a grueling twelve hours to replace all the lines on the car plus new master cylinder and bleeding all four corners. But now the car has a nice firm brake pedal and I have no more fears of lines bursting under sharp brake application. Thanks again for the help guys!
